Description
Note: There are two models in this link, F93T-XG and F94T-XG. Please check carefully before payment to avoid purchase errors. The seller is not responsible for the resulting return shipping costs and other losses.
>>Parameter:

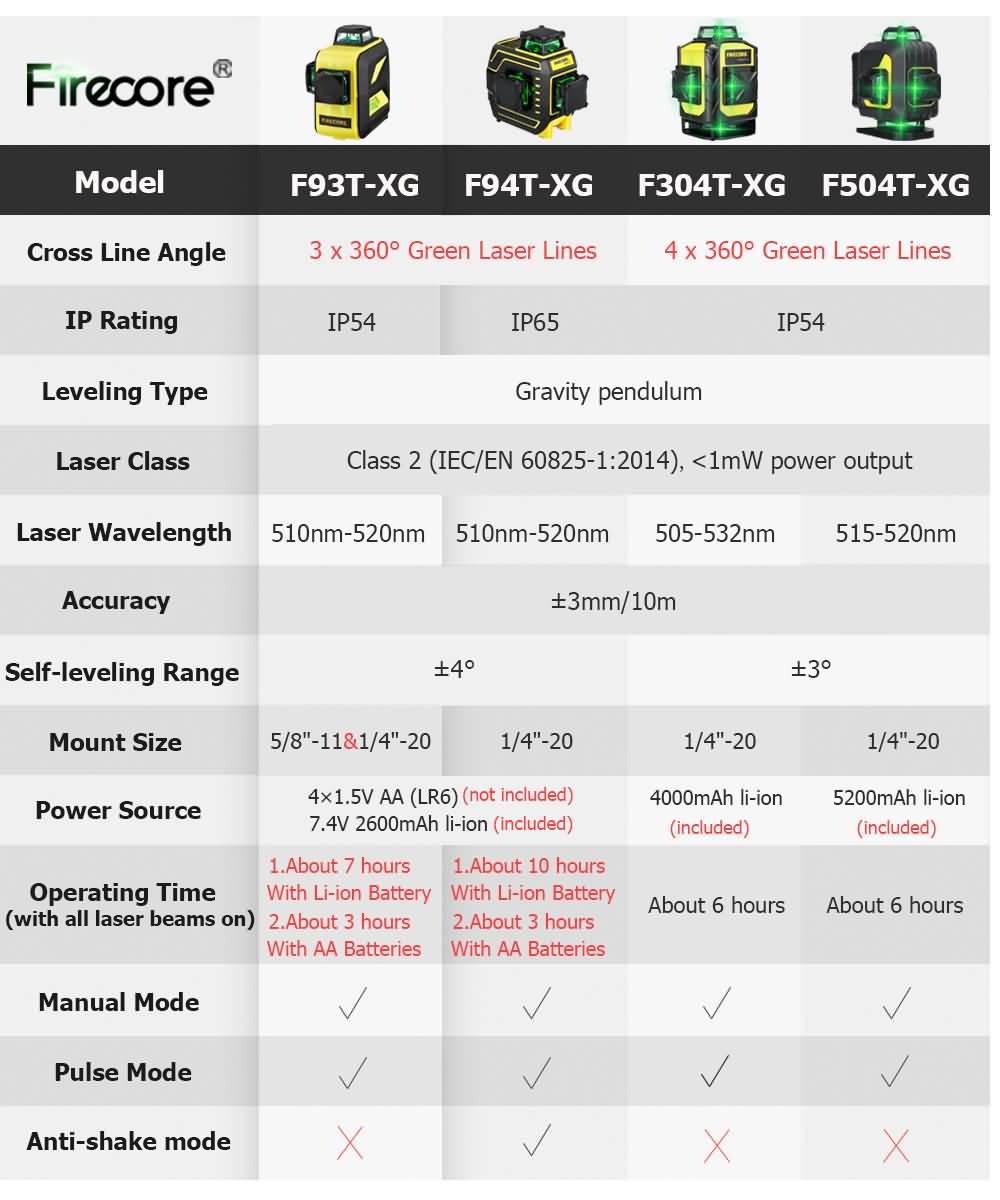

Model: F93T-XG/F94T-XG

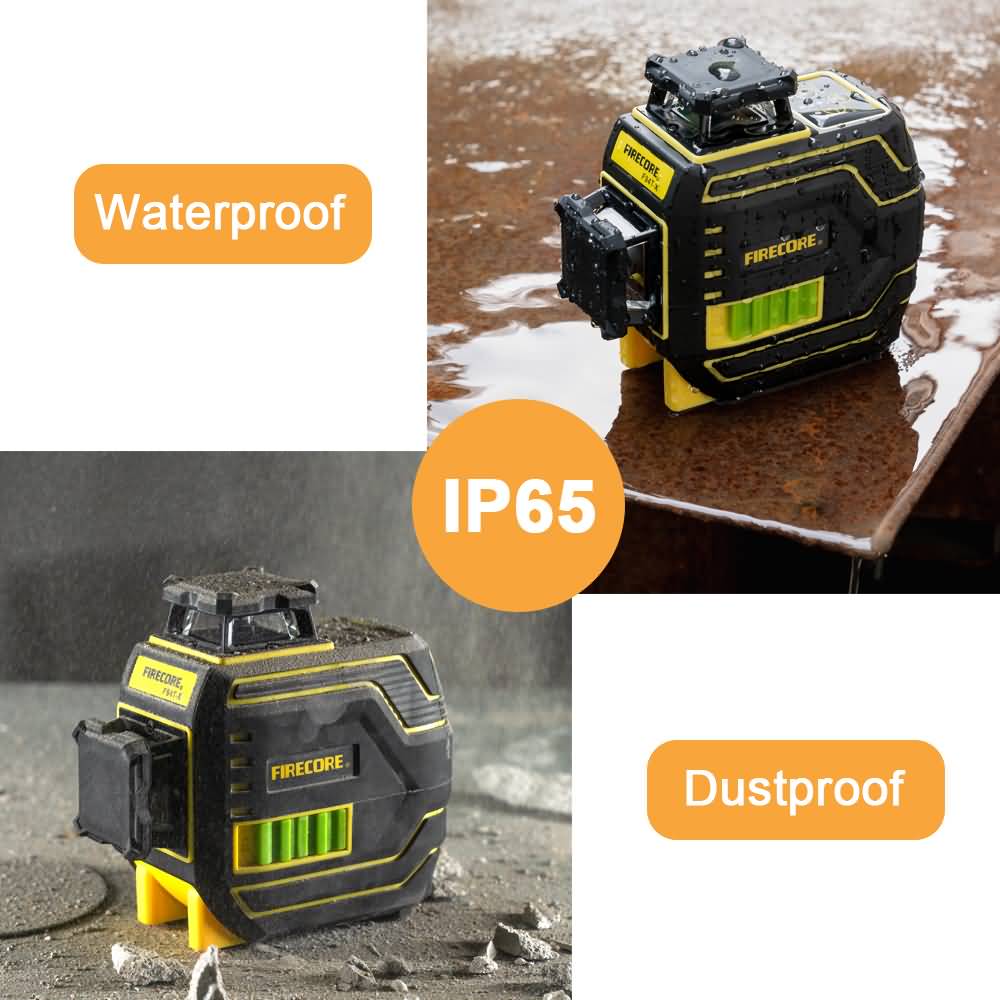

IP Rating: IP54/IP65
Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW
Laser Wavelength: Japan Sharp, 510-520nm
Horizontal/Vertical Accuracy: ±3mm/10m
Self-leveling Range: ±4°
Leveling Type: Gravity pendulum
Maintenance and after-sales: 1 year warranty

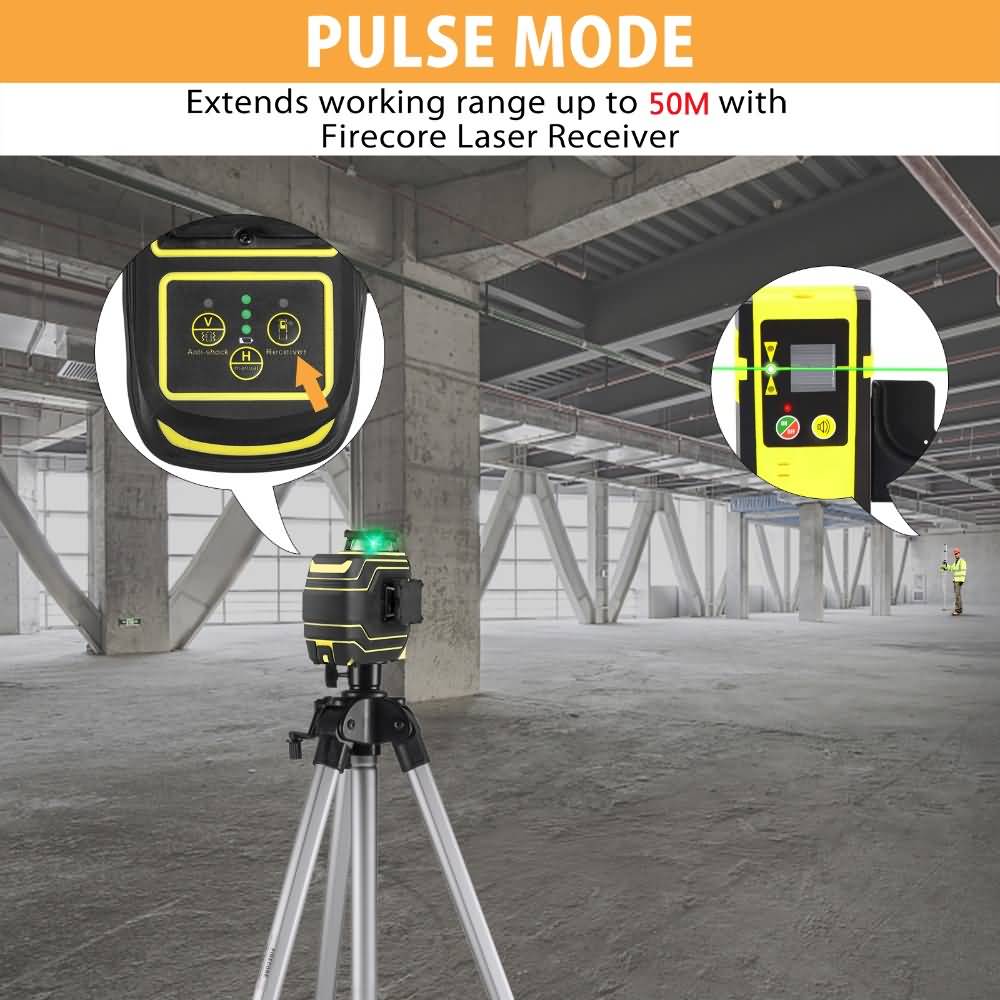

Working range (radius): 25m/(up to 50m with the FIRECORE FD20 laser detector)

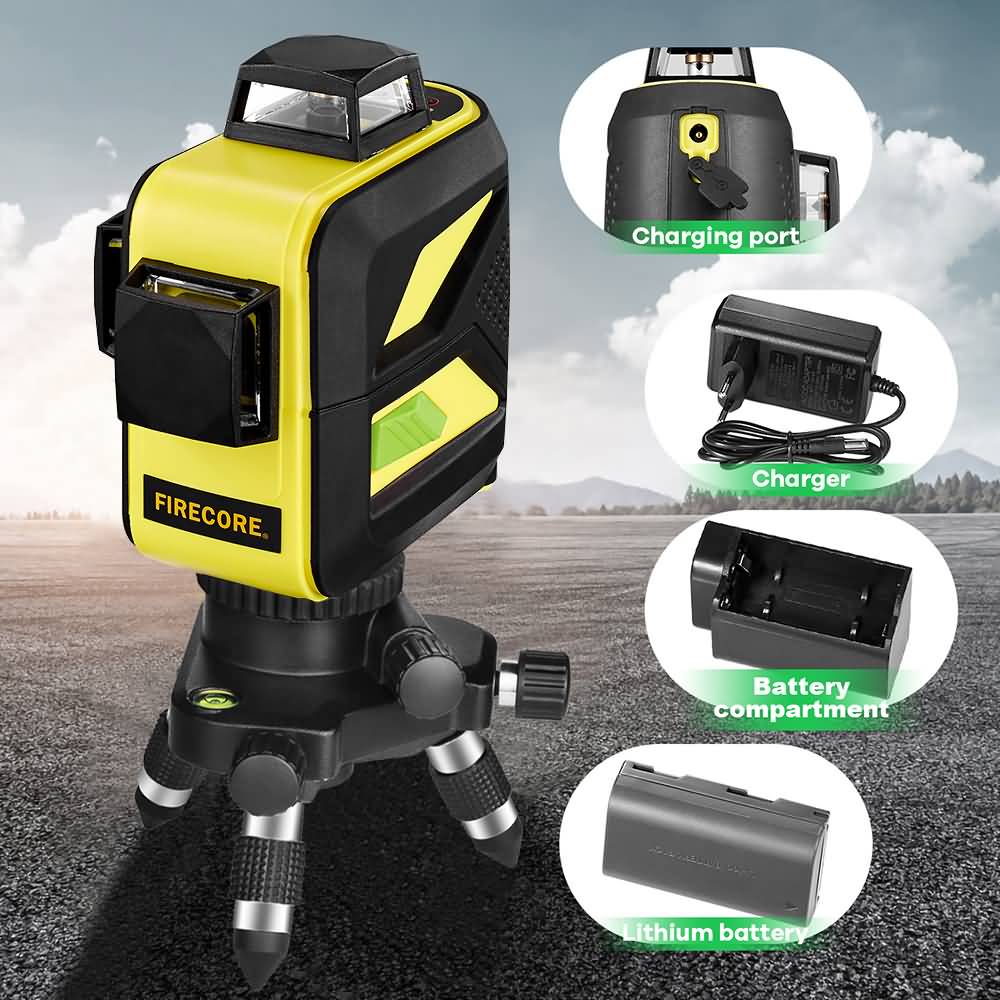

Power supply: Rechargeable 7.4V 2600mAh lithium battery & Battery compartment(not include4*1.5V AA battery)
Power type: EU plug (send EU plug by default, if you need other plugs, please contact customer service)

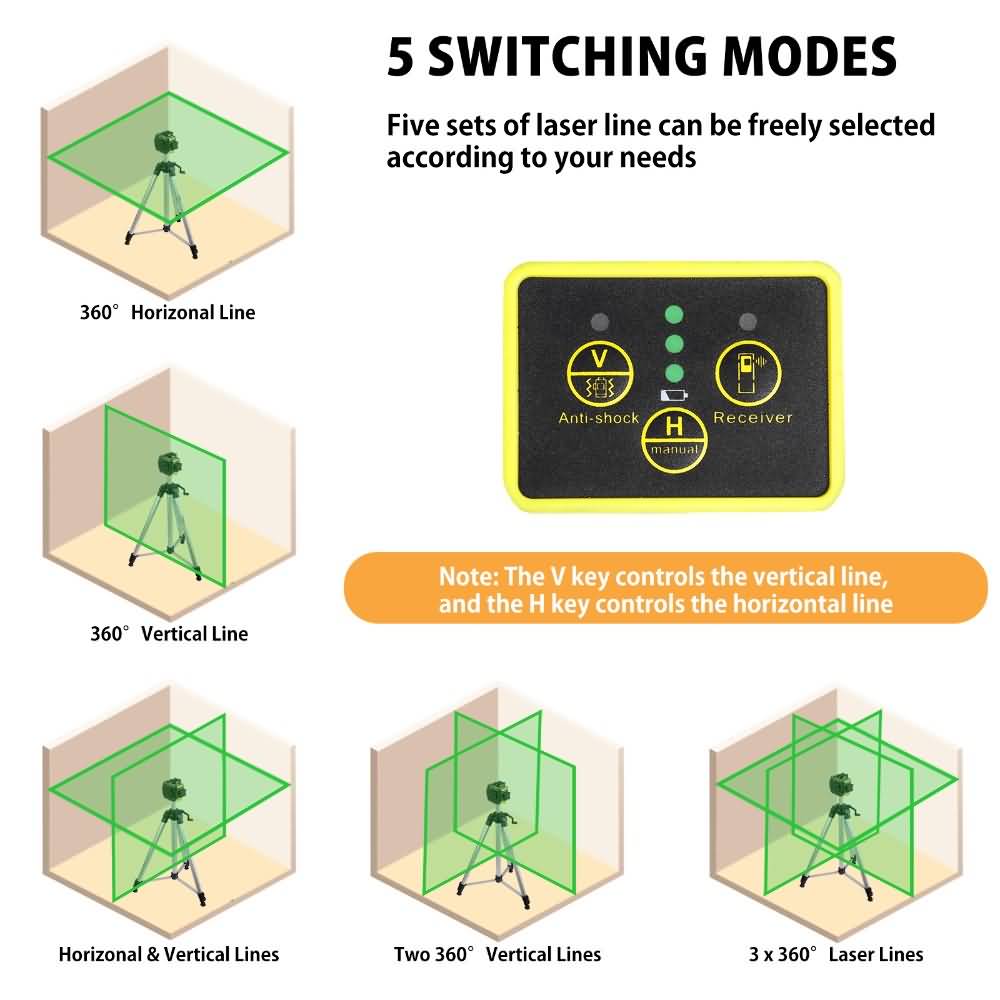

>>Laser lines introduction:

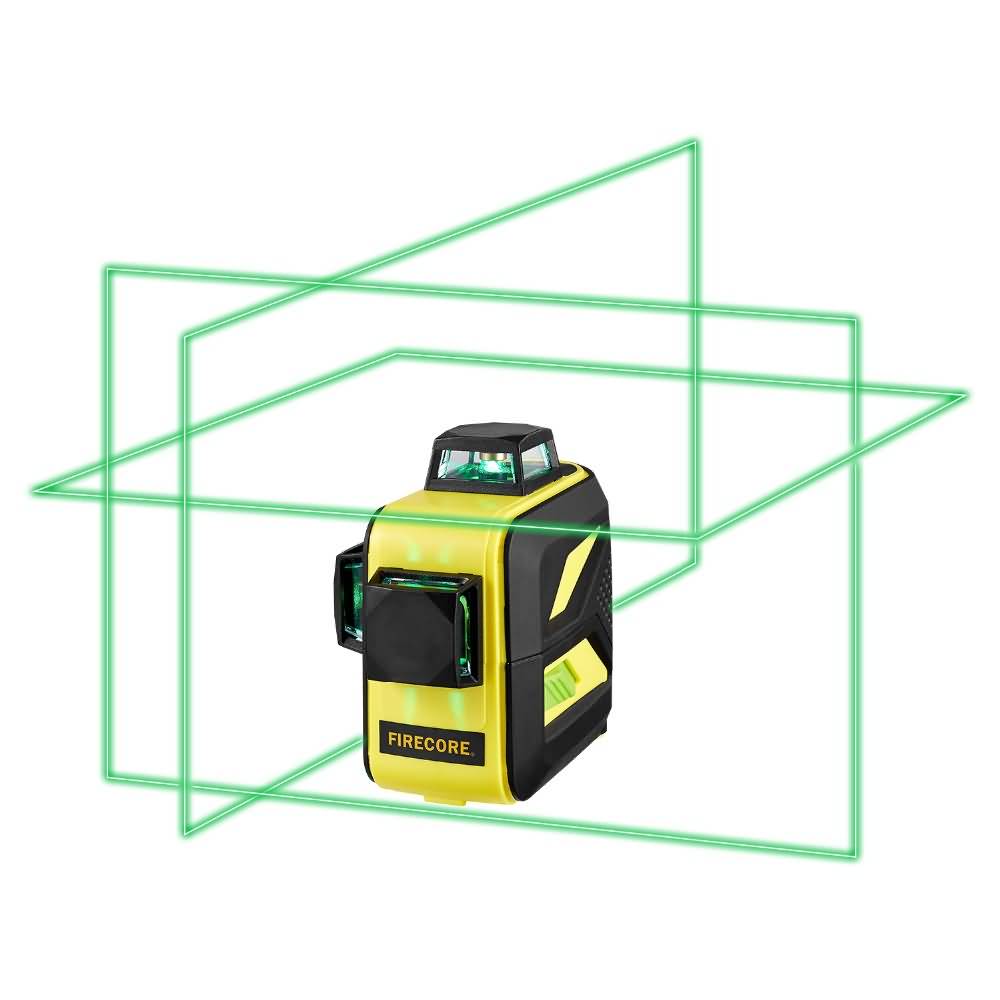

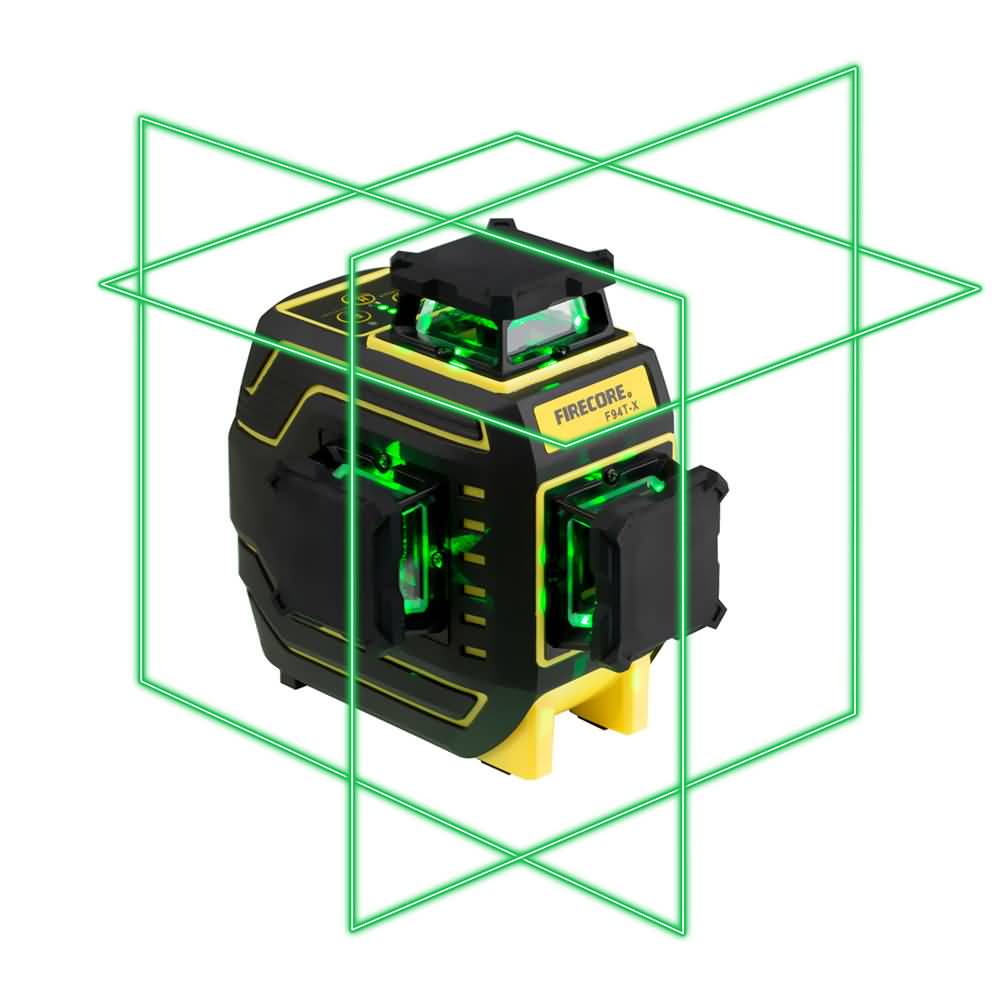

The laser level has 3 laser windows, each window can launch 4 laser lines, totally 12 laser lines(4 laser lines combine to a plane). Every time click on the button, there will be 4 laser lines of a plane. Attention: There are at least 4 laser lines, it can not keep 1 or 2 laser lines

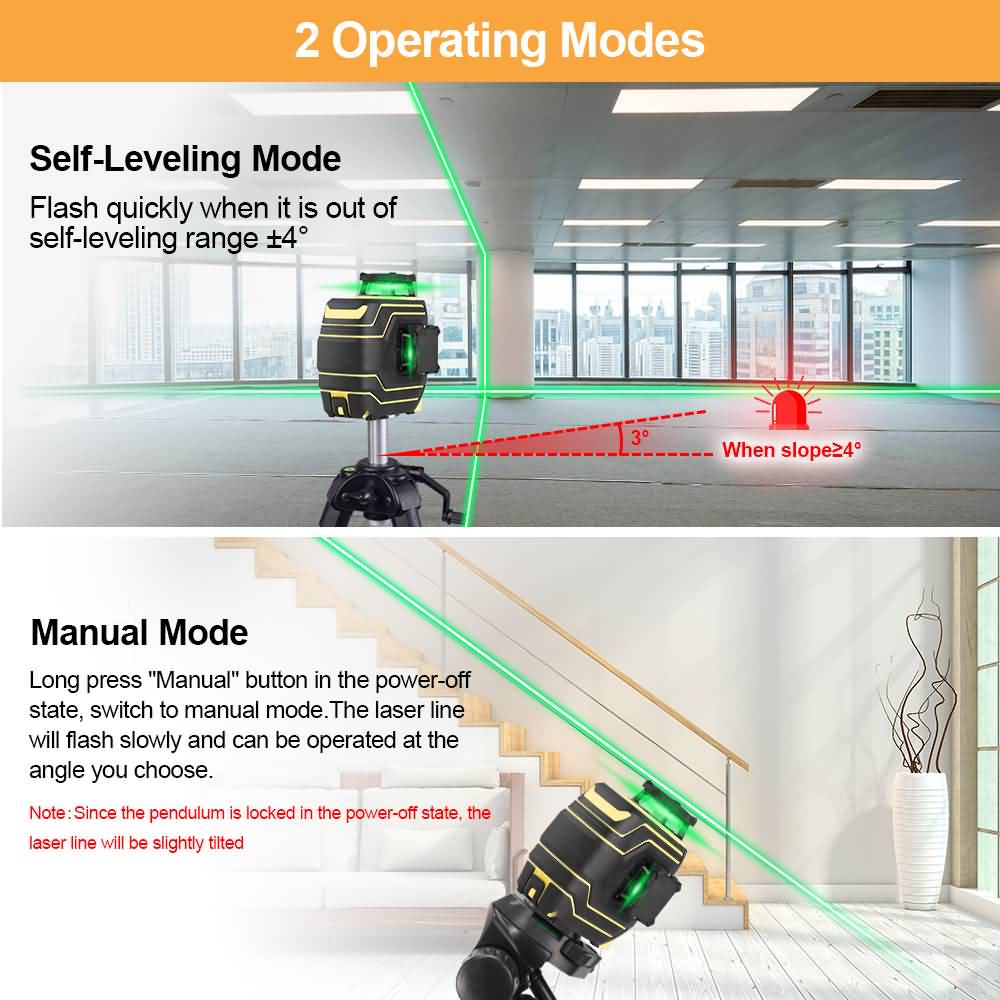

>>Self-leveling function:
On state, the instrument will be self-leveling within 4°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Slope mode(Manual mode):

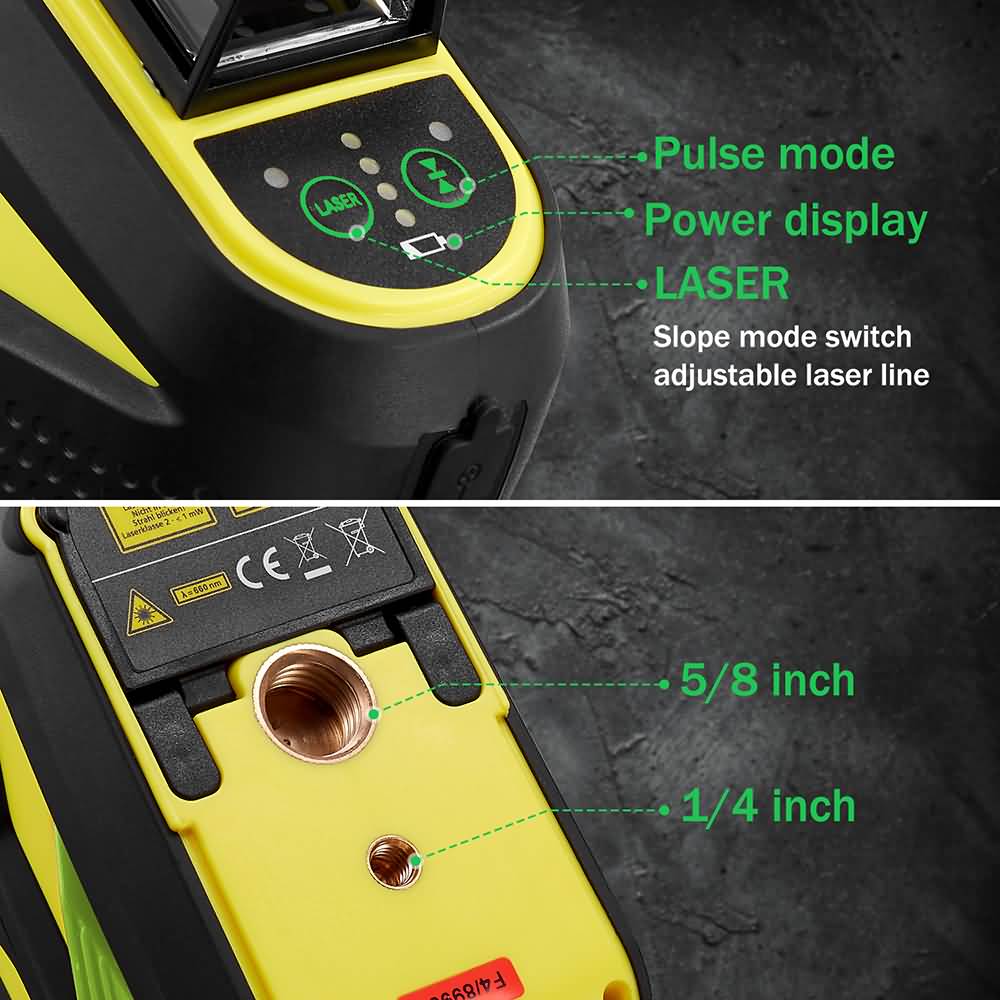

Off state, press and hold the "LASER"（F93T-XG）/"Manual"（F94T-XG）button for about 3 seconds, the laser line will be turned on, and the laser line s inclined, when the instrument tilt angle exceeds 4º, the laser line flashes slowly and can be operated at the angle you choose. Long press "LASER"（F93T-XG）/"Manual"（F94T-XG）button to exit this mode.
About F94T-XG
About F93T-XG
