Buy FIRECORE 32X Automatic Optical Level +Tower Ruler +Tripod Accurate Levelling FC-32N


Buy product

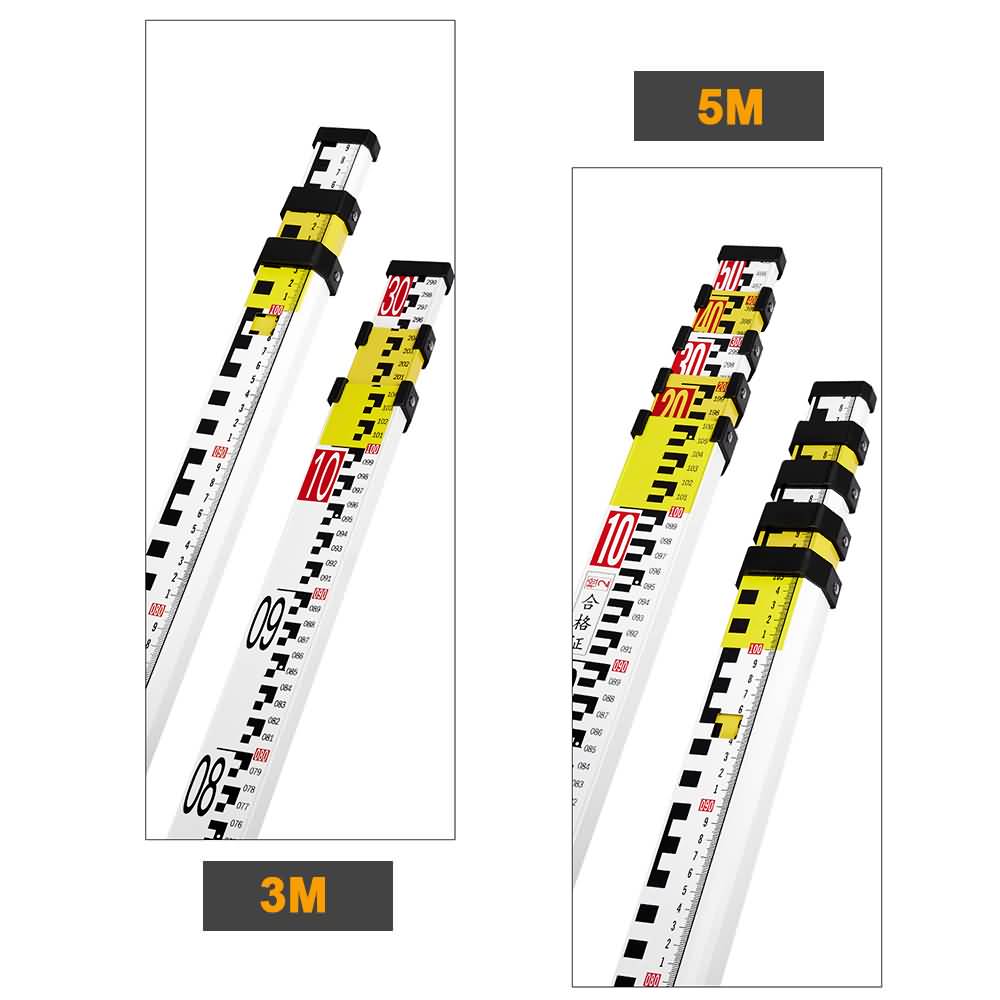

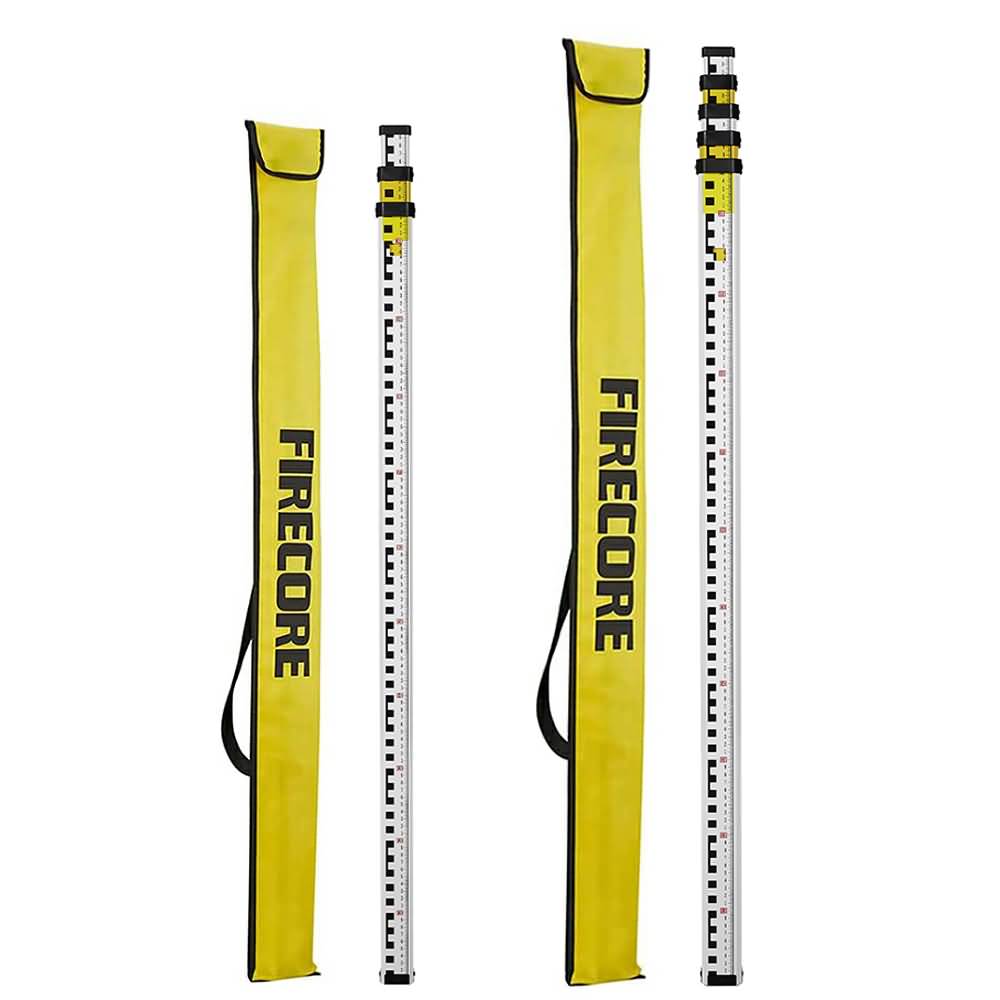

△5m tower ruler(Optional):
Folding 120CM
Stretch: 5M
Ruler Width: 5.5cm
Weight 1.6KG
△3m tower ruler (Optional):
Folding 115CM
Stretch: 3M
Ruler Width: 4.5 cm
Weight 0.6KG

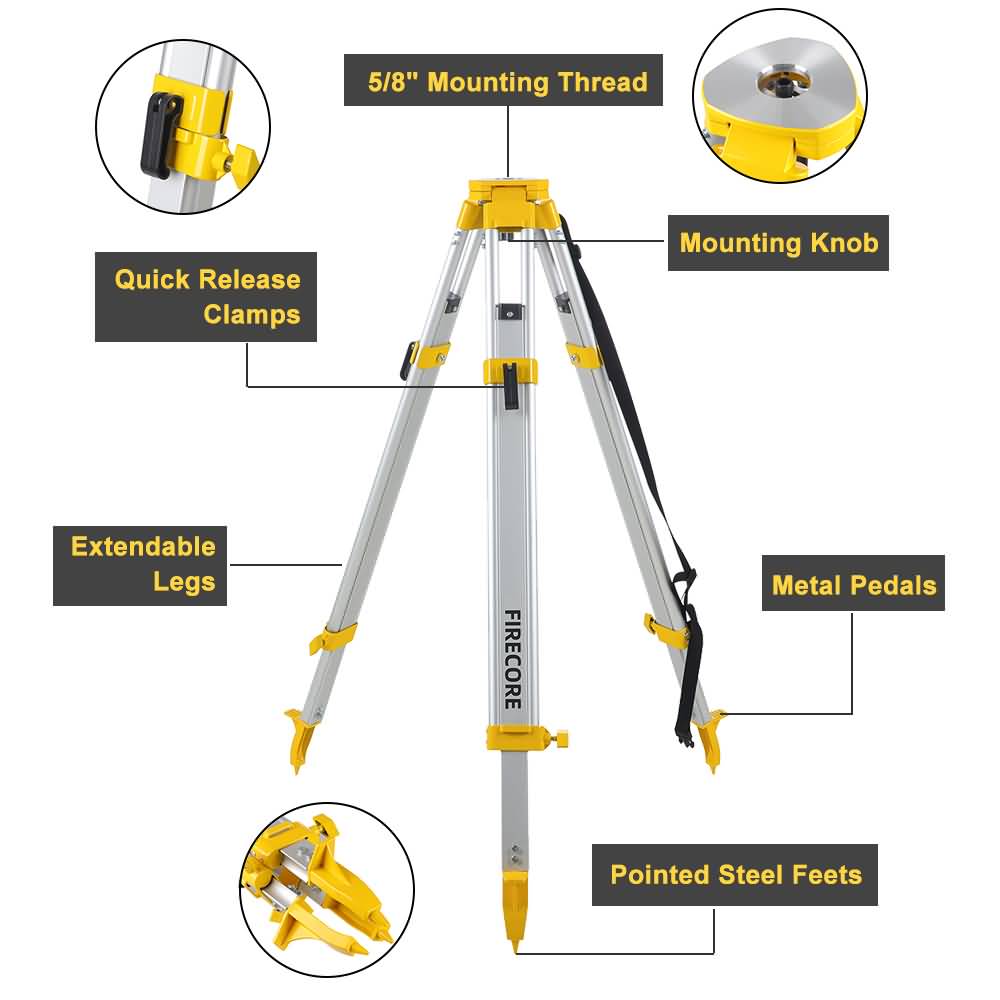

△1.6m tripod(Optional):
Model: FT1600B
Thread: 5/8"
Material: Anodized Aluminum Die Casting

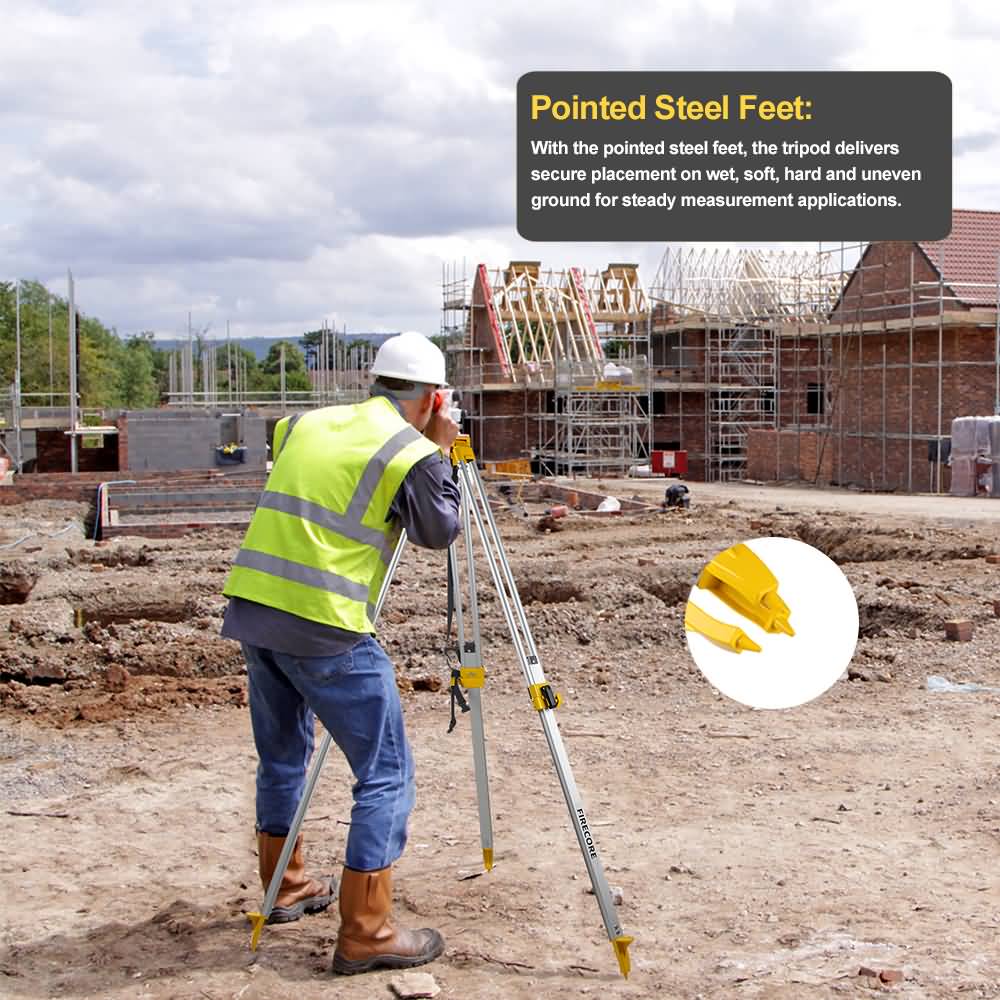

Foot Material: Aluminum
Extended Working Height: 0.32-1.6m
Storage Length: 1m
Net Weight: About 3.45kg
Load capacity: 14kg / 30.86lb (When the measuring tool is heavy, install the measuring tool after unfolding)

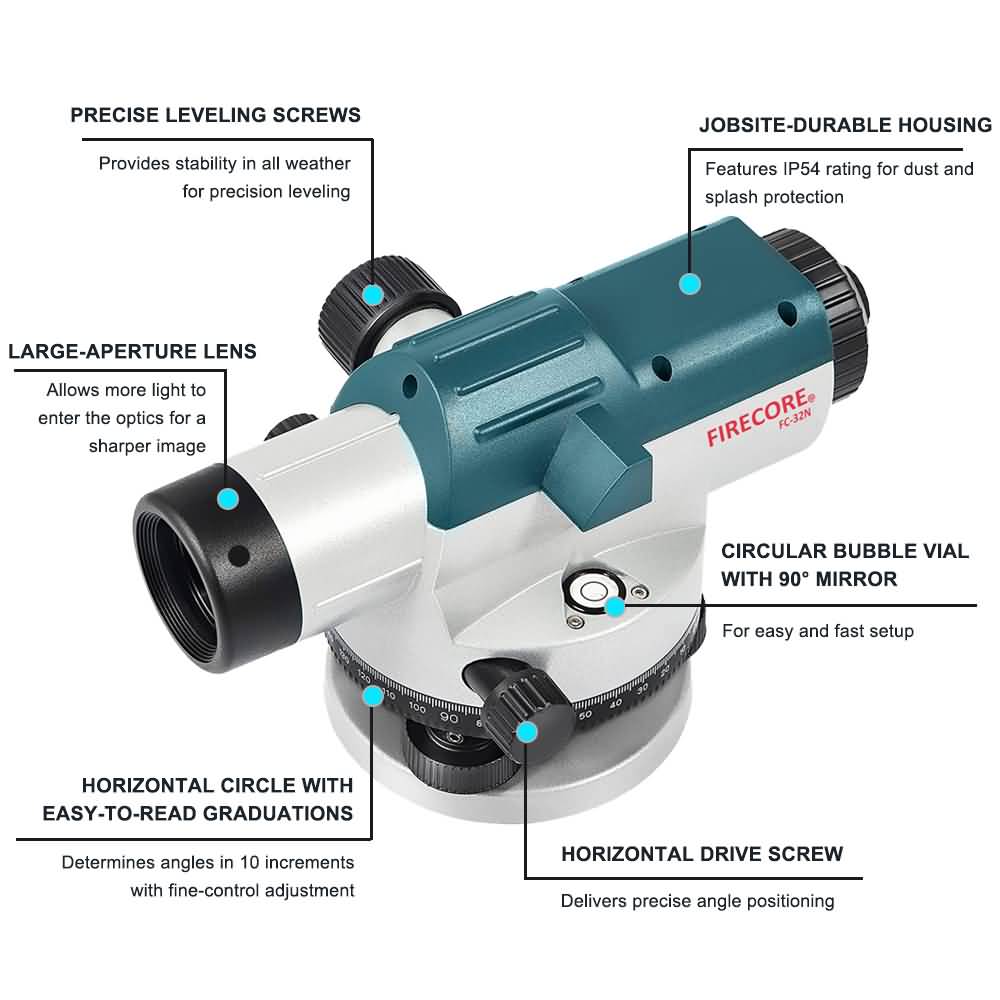

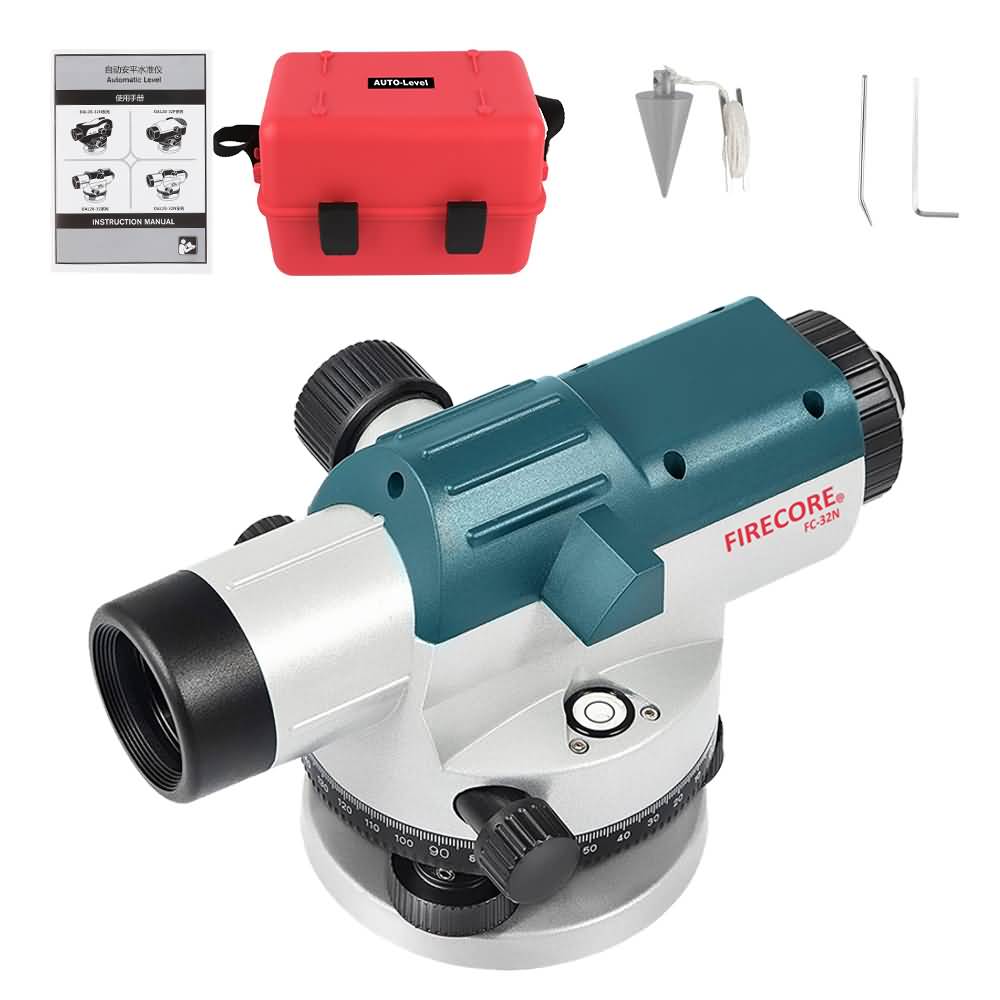

△Optical level
Model: FC-32N

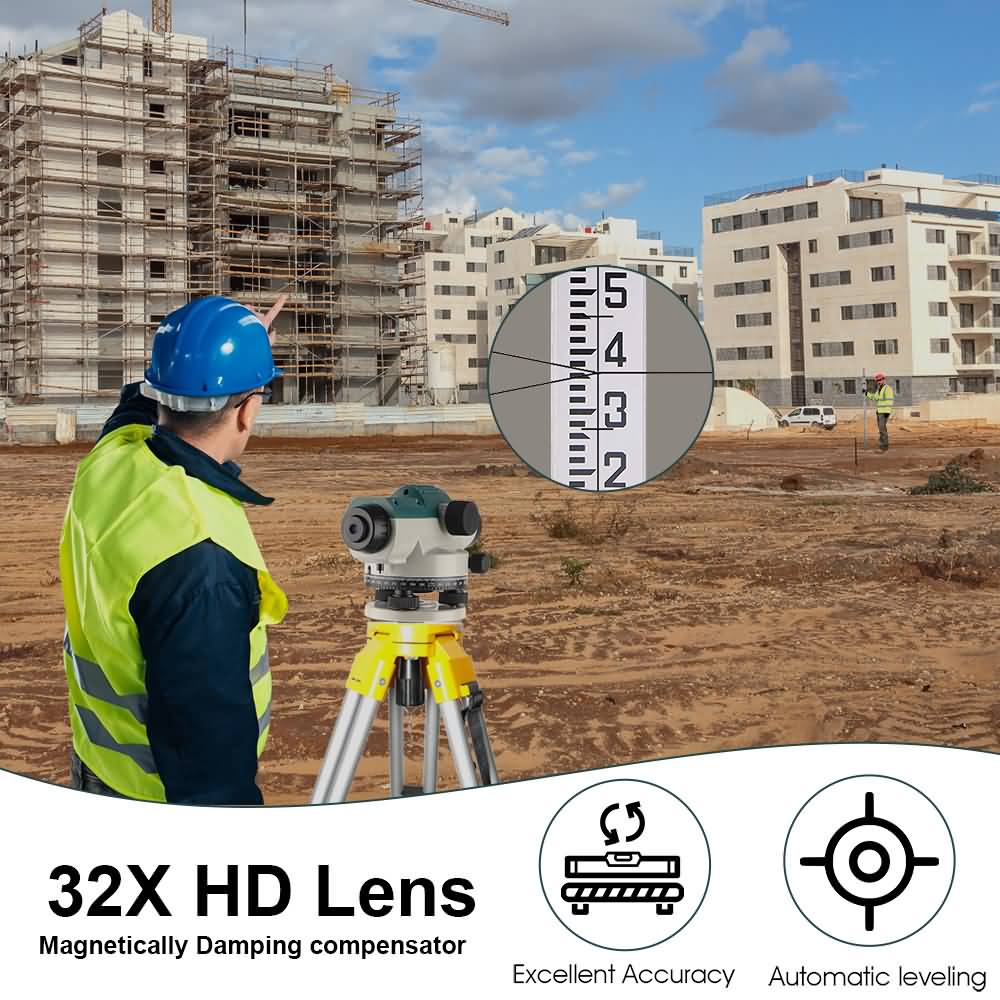

Magnification: 32X
Protection class: IP54
Clear lens hood: 40mm; Working area: 120m
Height accuracy for an individual measurement: 1.6mm / 30m
Leveling type: magnetically damped compensator
Compensator setting accuracy: ± 0.3 ”
Deviation for 1 km double leveling: 1.0mm
Telescope picture: erect
Minimum measuring distance: 0.3m
Field of view: 1 ° 30
Compensator compensation range: ± 15 ’
Stage ratio: 100; Stadium addition: 0
Ring vial accuracy: 8 ″ / 2mm
Horizontal circle graduation: 1 °
Tripod thread: 5/8 ”
Item weight: 2.7kg

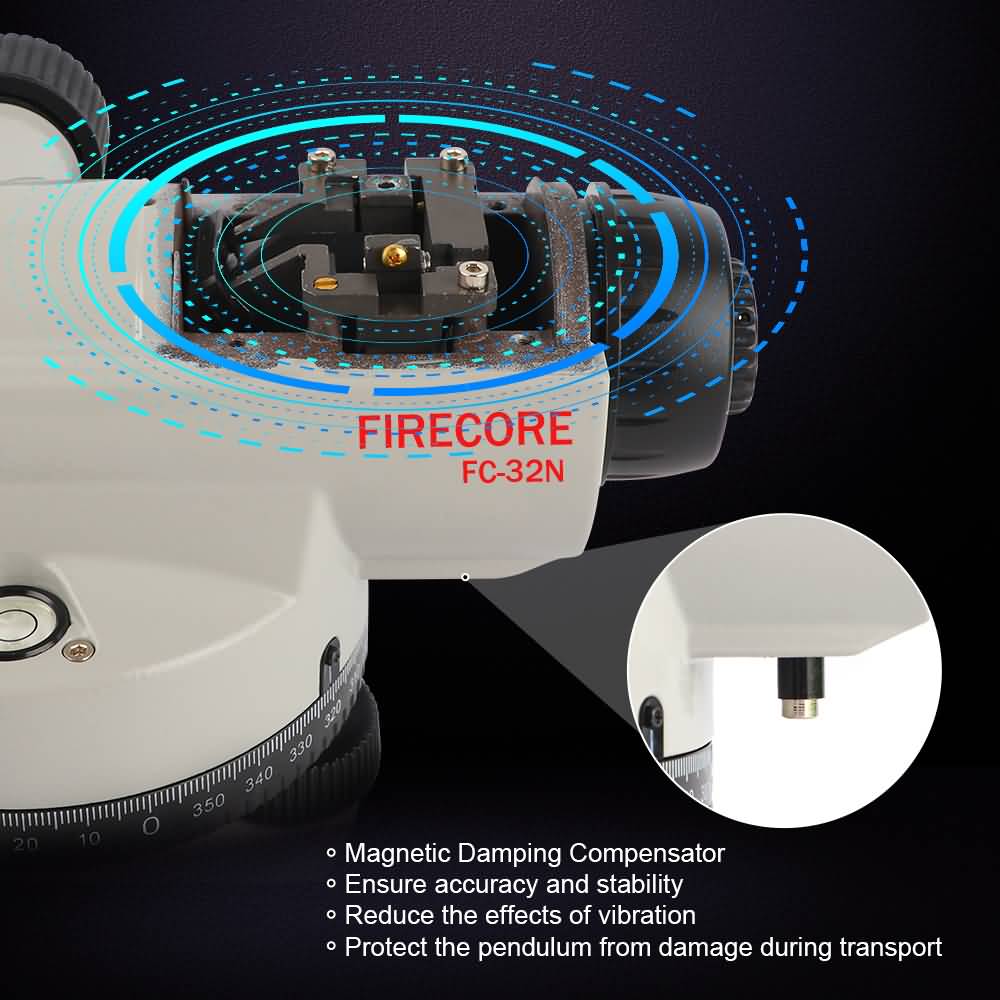

1: FC-32N Optical Level features a self-leveling compensator with lock to protect the pendulum against damage when transporting
2: With a powerful 32x magnification, the level allows for a working extended range of 400-feet. The GOL 32 provides excellent accuracy of 1/16-inch at 100 feet

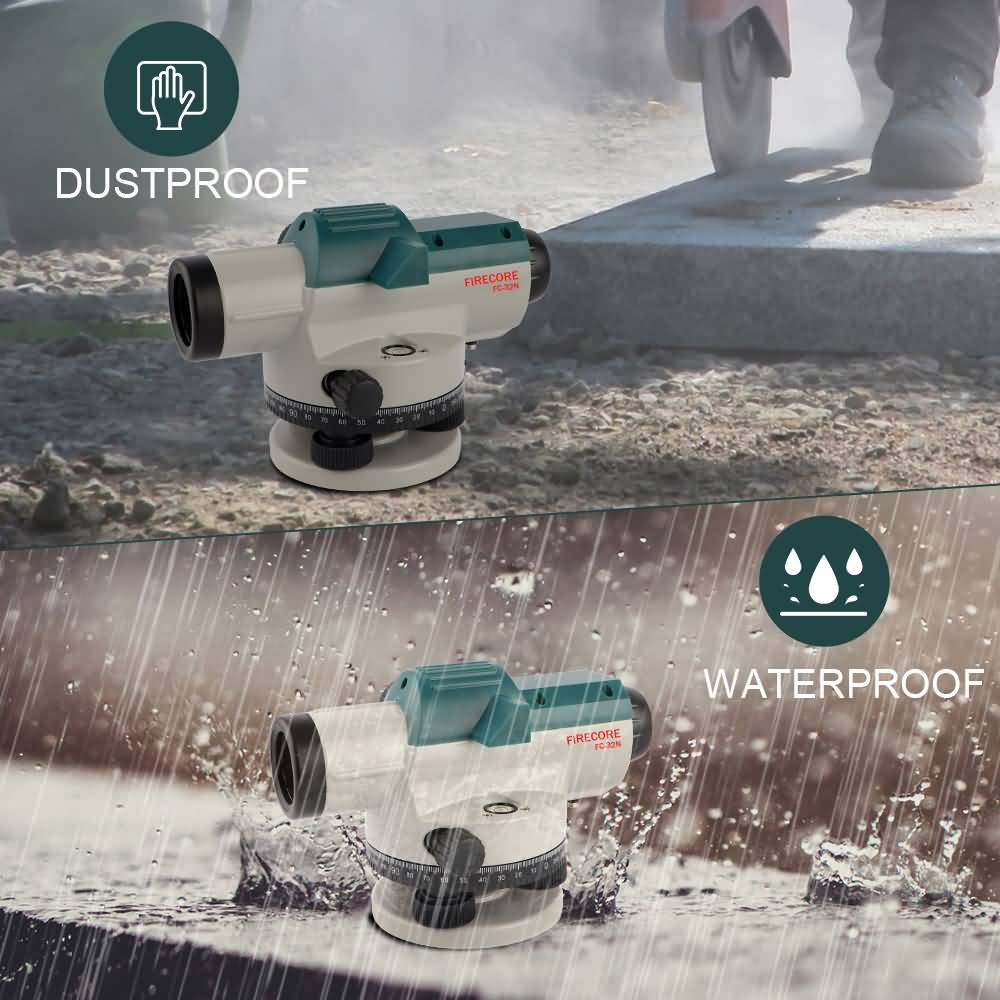

3: Featuring all metal housing and IP54 protection for weather resistance and durability, the level is protected and durable. The magnetic dampening system quickly settles the system and reduces the effects of jobsite vibration
4: The optical level offers both horizontal and vertical crosshairs and stadia lines to measure level and alignment and to also estimate distance
5: The circular bubble vial with a 90-degree prism allows for easy, fast set-up and alignment
